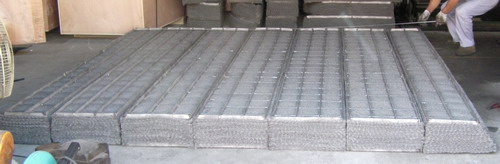

VERTICAL MIST ELIMINATOR AND SUPPORT GRID

VERTICAL MIST ELIMINATOR AND SUPPORT GRID (FULL

ASSEMBLY), DIMENTIONS: 2950 mm x (2944 mm TOP

PAD OUTSIDE AND 3098 mm TOP BOTTOM OUTSIDE), PAD

MATERIAL: S.S. 316L, THICKNESS: 150 mm (6") , PAD

WEIGHT: 265 Kgs, DENSITY: 193 Kgs/Mts3. INCLUDING:

PAD (SS 316L), TIE WIRE (SS 316L), STAPLE (SS 316L),

ROUND BAR (SS 316L), FLAT BAR (SS 316L). ACCORDING

TO DRAWING NUMBER: G094-02V3003-D07-B.

G094-02V3003-D01

EQUIPMENT TAG: 02V3003

REQUIRED DATE: SEPTEMBER 2013
