mist eliminator Demister

mist eliminators are porous blankets of metal wire or plastic knitted mesh, designed and constructed for the efficient, economical removal of entrained liquid droplets from vapor streams.

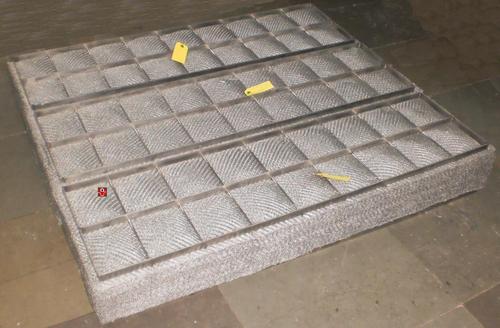

We are instrumental in providing fine quality Demister Pads With Grid to our valuable customers. Widely appreciated by our clients, these Demister Pads With Grid is manufactured by using high quality material which ensure its best quality and durability. We offer these Demister Pads With Grid at most affordable prices to our precious customers.

Wire MESH demister Pads can be fabricated in any required size and shape and may be installed in new or existing process vessels.

When vapor and entrained liquid droplets pass through a Wire MESH demister mist eliminator, the vapor moves freely through the mesh pad but the liquid droplets, due to their greater inertia, cannot make the necessary sharp turns and as a result are thrown into contact with the wire surfaces and briefly held there. As more droplets enter the pad and collect on the wires, they grow in size, run down the wire to the bottom surface of the mesh separator and fall from the unit. Overhead vapor is now free of entrained liquid.

Mesh and grids may be made from most metals and plastics i.e. SS-304, 304L, 316, 316L, 430, Monel, Nickel, Copper, P.T.F.E. (Teflon), H.D.P.E., P.P. etc. and other metals, alloys or plastic which can be drawn or extruded.

Wire MESH demister Air filler mesh is most commonly used filtration material in the Automotive industry. It has typical application as Air Filters, Entrainment separators, silencers, flam arrestors, oil filters etc.

					Style and Their Feature
Style	Density kg/m3		FreeVolume %	SurfaceArea m2/m3		Products of Other Companies
					Metex		T.C.I	York	Becoil	Knitmesh	Vico-Tex	Uop	Koch		Acs
H	80		99.0	158	Hi-Thruput		D80	931	954	4536	160	B	511		7CA
L	120		98.5	210			D120	422
N	144		98.2	280	Nu-Stanadrd		D144	431		9030	280	A	911		4CA
SN	128		98.4	460			D128	326			415		706
SL	193		97.5	375	Xtra-Dense		D193	421	890	9033	380	C	1211		4BA
SM	300		96.2	575			D300
SH	390		95.0	750			D390
T	220		97.2	905			D220
R	432		94.5	1780	Multi-Strand		D432	333			800
W	220		97.2	428	Wound		D220
