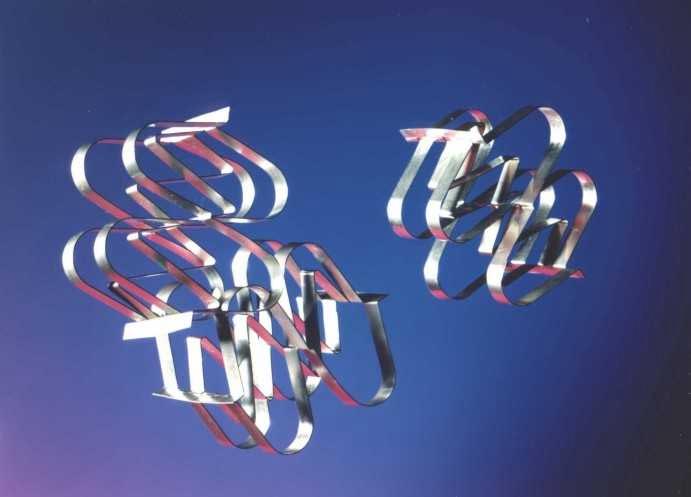

Raschig Super Ring

Raschig Super-Ring

 "Raschig Super-Ring®" which sets new performance standards in the use of mass transfer columns.  The Raschig Super-Ring® optimized fluid-dynamic design produces an effective mass transfer between the phases flowing in the column. It achieves large interfaces and an even distribution of the liquids over the column cross-section. High loading capacities permit large column throughputs, and low pressure drops yield low operating costs.

Features

  • Liquid film flow with entangled packing, similar to our latest model SPIRAX, resulting in large material transfer (Same effect is confirmed with our product, TELLERETTE.)
  • Flooding at joints prevented with “Semi Structured Packing”
  • Support rings do not have to be completely removed when remodeling shelf block towers
  • However, when remodeling to standard packings, support rings need to be completely removed up to the outer-circumference edge.
  • Reduced number of redistributors with homogeneous liquid distribution
  • Cost savings with high-speed machines
  • RSR is available in SUS as well as materials that are thick or thin such as titan, nickel, and tantalum
  • HETP, pressure loss and intensity are far beyond the most efficient random packings
  • Verified high performance of RSR by tests in the world-class distillation research institute, FRI (Fractionation Research, Inc.)
Major Applications
  • Absorption, diffusion and distillation towers
Specification of Raschig Super-Ring (RSR)
Raschig Super-Ring
(model number)		 Weight (kg/m3) Bulk Quantity
(number/m3)		 Surface Area
(m2/m3)		 Void (%) Size (Diameter)
[mm] [inch]
RSRNo.0.3 340 180,000 315 96 15 0.3
RSRNo.0.5 275 145,000 250 97 20 0.5
RSRNo.0.7 250 45,500 180 98 25 0.7
RSRNo.1 220 32,000 150 98 30 1
RSRNo.1.5 190 13,100 120 98 38 1.5
RSRNo.2 165 9,500 100 98 50 2
RSRNo.3 150 4,300 80 98 70 3
