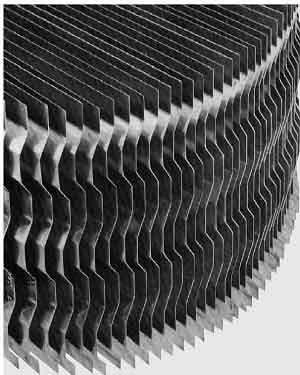

Vane Type Mist Eliminator



The vane types are very usual and useful internals for liquid separation from gas. These types according to design and shape can remove the droplets more than 8 microns.



The mist droplets, which are separated by the resulting centrifugal forces, collect on the vane blades. This coalesced liquid film is then drained through slits or pockets to a liquid sump from where it drains to the liquid compartment of the vessel.
